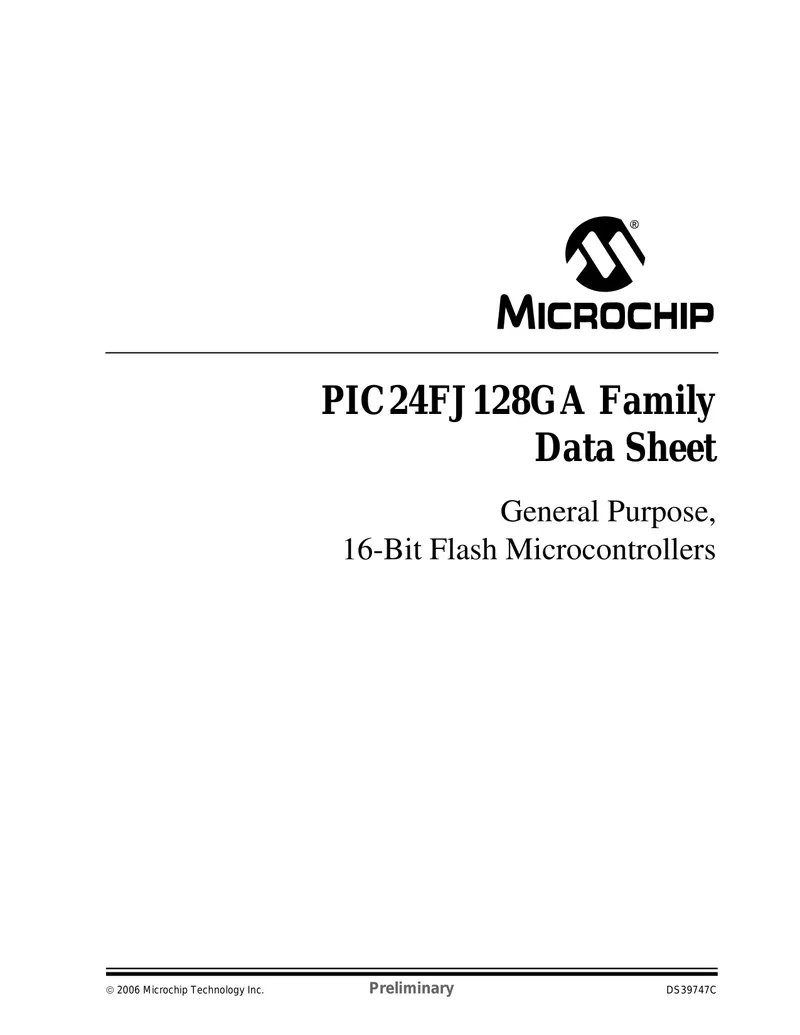

PIC24FJ128GA Family Data Sheet

This document is the official data sheet for the PIC24FJ128GA family of general-purpose, 16-bit flash microcontrollers from Microchip Technology. It provides comprehensive technical specifications, including high-performance CPU features such as up to 16 MIPS operation at 32 MHz, modified Harvard architecture, and a 17-bit x 17-bit single-cycle hardware fractional/integer multiplier. The data sheet covers analog features like a 10-bit, up to 16-channel ADC, as well as peripheral details, memory organization, and electrical characteristics.

The document is intended for embedded systems engineers and developers who need detailed hardware information for designing with these microcontrollers. It includes pin diagrams, memory maps, register descriptions, and timing specifications necessary for integration into various applications. The PIC24FJ128GA family is designed for general-purpose embedded control, offering a balance of performance and power efficiency.

This preliminary revision (DS39747C) from 2006 contains the initial specifications and may be subject to updates. It also includes legal notices regarding code protection, trademarks, and disclaimers. The data sheet is an essential reference for anyone working with Microchip's 16-bit microcontroller lineup, providing the foundational knowledge required for hardware design and firmware development.
